AES(Advanced Encryption Standard)

`timescale 1 ns/1 ps

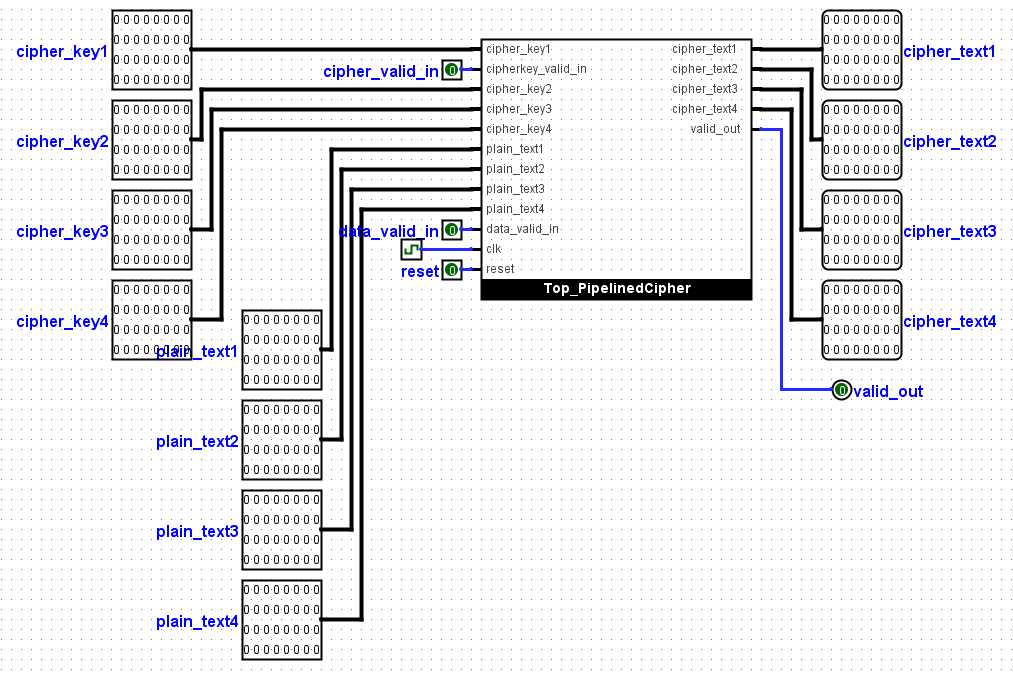

   module Top_PipelinedCipher
   #
   (
   parameter DATA_W = 128,      //data width
   parameter KEY_L = 128,       //key length
   parameter NO_ROUNDS = 10     //number of rounds
   )

   (
   input clk,                       //system clock
   input reset,                     //asynch reset
   input data_valid_in,             //data valid signal
   input cipherkey_valid_in,        //cipher key valid signal
   input [KEY_L-1:0] cipher_key,    //cipher key
   input [DATA_W-1:0] plain_text,   //plain text
   output valid_out,                //output valid signal
   output [DATA_W-1:0] cipher_text  //cipher text
   );

   wire [NO_ROUNDS-1:0] valid_round_key;            //all round keys valid signals KeyExpantion output
   wire [NO_ROUNDS-1:0] valid_round_data;           //all rounds ouput data valid signals
   wire [DATA_W-1:0] data_round [0:NO_ROUNDS-1];    //all rounds data
   wire valid_sub2shift;                            //for final round connection
   wire valid_shift2key;                            //
   wire [DATA_W-1:0]data_sub2shift;                 //
   wire [DATA_W-1:0]data_shift2key;                 //
   wire [(NO_ROUNDS*DATA_W)-1:0] W;                 //all round keys

   reg[DATA_W-1:0] data_shift2key_delayed;           //for delay register
   reg valid_shift2key_delayed;

   //instantiate Key Expantion which will feed every round with round key
   KeyExpantion #(DATA_W,KEY_L,NO_ROUNDS) U_KEYEXP(clk,reset,cipherkey_valid_in,cipher_key,W,valid_round_key);

   //due to algorithm,first cipher key will be xored witht plain text
   AddRoundKey #(DATA_W)U0_ARK(clk,reset,data_valid_in,cipherkey_valid_in,plain_text,cipher_key,valid_round_data[0],data_round[0]);

   //instantiate all rounds , connect them with key expantion
   genvar i;
   generate
   for(i=0;i<NO_ROUNDS-1;i=i+1) begin : ROUND
    Round #(DATA_W)U_ROUND(clk,reset,valid_round_data[i],valid_round_key[i],data_round[i],W[(NO_ROUNDS-i)*DATA_W-1:(NO_ROUNDS-i-1)*DATA_W],valid_round_data[i+1],data_round[i+1]);
   end
   endgenerate

   //this is the final round it doesn't contain mixcolumns as declared in fips197 standard document
   SubBytes #(DATA_W) U_SUB (clk,reset,valid_round_data[NO_ROUNDS-1],data_round[NO_ROUNDS-1],valid_sub2shift,data_sub2shift);
   ShiftRows #(DATA_W) U_SH (clk,reset,valid_sub2shift,data_sub2shift,valid_shift2key,data_shift2key);
   AddRoundKey #(DATA_W) U_KEY (clk,reset,valid_shift2key_delayed,valid_round_key[NO_ROUNDS-1],data_shift2key_delayed,W[DATA_W-1:0],valid_out,cipher_text);

   /*as the final round has only three stages a delay register should be introduced
     to be balanced with key  expantion*/
   always @(posedge clk or negedge reset)

   if(!reset)begin
       valid_shift2key_delayed <= 1'b0;
       data_shift2key_delayed <= 'b0;
   end else begin

    if(valid_shift2key)begin
      data_shift2key_delayed <= data_shift2key;
    end
      valid_shift2key_delayed <= valid_shift2key;
   end

   endmodule
