**CORDIC stands for Coordinate Rotation Digital Computer.** It calculates the value of trigonometric functions like sine, cosine, magnitude and phase to any
desired precision. It can also calculate hyperbolic functions (such as sinh, cosh and tanh). The CORDIC algorithm does not use calculus based methods such as polynomial or
rational function approximation.

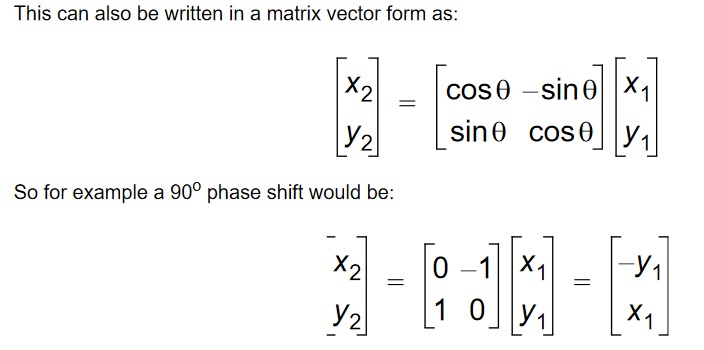

In a digital system, The standard method of rotating a point (x_{1}, y_{1})
by an angle θ in the xyplane to a point (x_{2}, y_{2}) is given by :

X_{2} = x_{1}cosθ - y_{1}sinθ

Y_{2}= x_{1}sinθ + y_{1}cosθ

We call this equation 1.

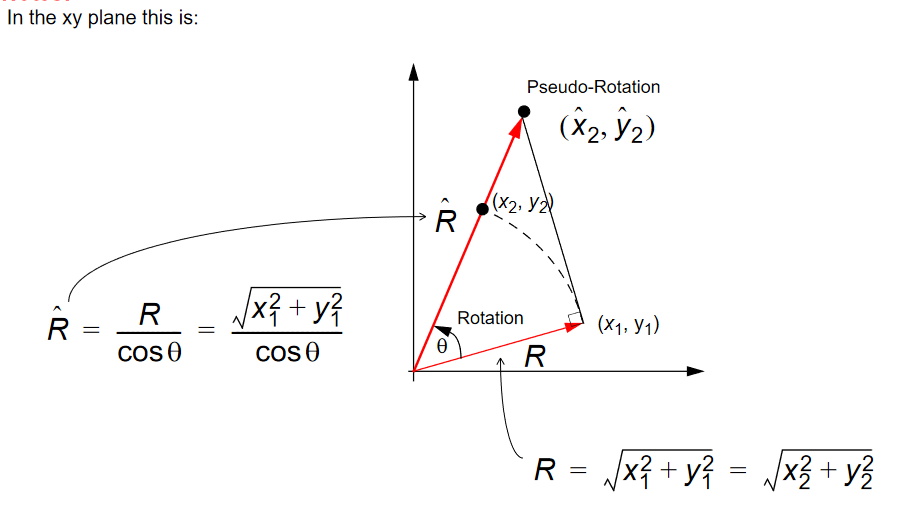

By eliminating cosθ:

We call this equation 2.It can be seen that cosθ is more of a scaling factor. during our implementation in OFDM, an arbitrary gain will be used for multiplication rather than cosθ. Since we are implementing in a digital system multiplications and divisions can be reduced further by introducing θ, be to a unit step in base 2 , so divisions and mutliplications can be represented as just addition and substraction.

Additional multipliers can be eliminated by selecting the angle steps such that the tangent of a step is a power of 2. Multiplying or dividing by a power of 2 can be implemented using a simple shift operation. The angle for each step is given by :

This results in the following equation for tanθ

S, represents a sign {-1;+1}

combining this new value of tanθ with equation 2, yields equation 3:

And the final cordic equation is represented as:

We call this ** equation 3**

At this point a new variable called ‘Z’ is introduced. Z represents the part of the angle θ
which has not been rotated yet. since it is an interation If we add the computation for X and Y we get the program-like style for the CORDIC
core.

For n=0 to [inf] If (Z(n) >= 0) then X(n + 1) := X(n) – (Yn/2^n); Y(n + 1) := Y(n) + (Xn/2^n); Z(n + 1) := Z(n) – atan(1/2^n); Else X(n + 1) := X(n) + (Yn/2^n); Y(n + 1) := Y(n) – (Xn/2^n); Z(n + 1) := Z(n) + atan(1/2^n); End if; End for;

**Note:**

The code above represents one rotation or iteration, we would perform multiples iterations to get a particular sine or cosine value, that is
why Z was introduced to store the angle at a particular iteration.

Multiple iterations are performed since one iteration cannot lead us to the exact angle we are looking for, since there is no lookup table.

from the code above, Z(n) >= 0 represents when S=+1, and vice versa.

We can calculate the sine, and cosine of angles from equation 1, by setting Y to zero and X to a constant gain.

An example is given below:

**Example:**
Calculate sine and cosine of 30degrees.

First the angle has to be calculated into binary using a scale:

360^{o} = 2^{16} *since we would be using a 16-bit input*

30^{o} = ????

We cross multiply

(30 * 2^{16}) /360 = 5461 (dec) = 1555 (hex)

Converting to binary = **1 0101 0101 0101**

so the above result is what we input to the angle, while setting Y = 0, and X= a constant gain

In mathematics further calculations are used to derive the constant gain as 0.607.......

But for the sake of OFDM or FFT in FPGA an arbitrary gain can be used to scale it to a given threshold

without affecting the sine and cosine outputs as seen from the earlier derivations above:

We already have a table of arctan i.e tan^{-1}θ. Ranging from

θ =
[1/2^{0} , 1/2^{1} , 1/2^{2} , 1/2^{3} , 1/2^{4} , 1/2^{5} , 1/2^{6} , 1/2^{7} ,
……… 1/2^{n-1} , ] n= no of iterations

In degrees it is equal to

[45^{o}, 26.565^{o}, 14.036^{o}, 7.125^{o}, 3.576^{o}, 1.790^{o}, 0.8950^{o} ……….]

Starting from θ = 0^{o}

cosθ = 1 ….. X=1

Sinθ = 1 ….. Y=0

*Now we perform the first iteration*

Rotating from 0^{o} to 45^{o}i.e (arctan 1/2^{0})

Substituting X=1, Y=0 ( from above. ), S = +1 (since it is a positive rotation) , 2^{-n} =1 where n=0, ….all into eqn3

X_{1} = X_{0} - (+1)Y_{0} /2^{0}=1 - 0/1 = 1

Y_{1} = (+1)X_{0}/2^{0} +Y_{0} =1/1 + 0 = 1

Performing the** second iteration**

Since 45^{o} is greater than 30^{o} next rotation will be negative.

Rotating 26.565^{o}i.e (arctan 1/2^{1}) from 45^{o}

45 – 26.565 = 18.435^{o}

Substituting X=1, Y=1 ( from above. ), S = -1 (since it is a negative rotation) , 2^{-n} =1/2, where n=1….all into eqn3

X_{2} = X_{1} - (-1)Y_{1} /2^{1}=1 + 1/2 = 1.5

Y_{2} = (-1)X_{1}/2^{1} +Y_{1} =-1/2 + 1 = 0.5

Performing the **Third iteration **

Since 18.435^{o} is less than 30^{o}, next rotation will be positive

Rotating 14.036^{o}i.e (arctan 1/2^{2}) from 18.435^{o}

18.435^{o} + 14.036^{o} = 32.4710^{o}

Substituting X=1.5, Y=0.5 ( from above. ), S = +1 (since it is a positive rotation) , 2^{-n} =1/4, where n=2….all into eqn3

X_{3} = X_{2} - (+1)Y_{2} /2^{2}=1.5 - 0.5/4 = 1.375

Y_{3} = (+1)X_{2}/2^{2} +Y_{2} =1.5/4 + 0.5 = 0.875

Performing the **fourth iteration**

Since 32.4710^{o} is greater than 30^{o}, next rotation will be negative

Rotating 7.125^{o}i.e (arctan 1/2^{3}) from 32.4710^{o}

32.4710^{o} - 7.125^{o} = 25.346^{o}

Substituting X=1.375, Y=0.875 ( from above. ), S = -1 (since it is a negative rotation) , 2^{-n} =1/8, where n=3….all into eqn3

X_{4} = X_{3} - (-1)Y_{3} /2^{3}=1.375 + 0.875/8 = 1.484375

Y_{4} = (-1)X_{3}/2^{3} +Y_{3} =-1.375/8 + 0.875= 0.703125

Performing the **fifth iteration**

Since 25.346^{o} is less than 30^{o}, next rotation will be positive

Rotating 3.576^{o}i.e (arctan 1/2^{4}) from 25.346^{o}

25.346^{o} + 3.576^{o} = 28.922^{o}

Substituting X=1.484375, Y=0.703125 ( from above. ), S = +1 (since it is a positive rotation) , 2^{-n} =1/16, where n=4….all into eqn3

X_{5} = X_{4} - (+1)Y_{4} /2^{4}=1.484375 - 0.703125/16 = 1.440429

Y_{5} = (+1)X_{4}/2^{4} +Y_{4} =1.484375/16 + 0.703125= 0.795898

Performing the **sixth iteration **

Since 28.922^{o} is less than 30^{o}, next rotation will be positive

Rotating 1.790^{o}i.e (arctan 1/2^{5}) from 28.922^{o}

28.922^{o} + 1.790^{o} = 30.712^{o}

Substituting X=1.440429, Y=0.795898 (from above. ), S = +1 (since it is a positive rotation) , 2^{-n} =1/32, where n=5….all into eqn3

X_{6} = X_{5} - (+1)Y_{5} /2^{5}=1.440429 - 0.795898/32 = 1.4155571875

Y_{6} = (+1)X_{5}/2^{5} +Y_{5} =1.440429/32 + 0.795898 = 0.840911406

you can either stop here, continue till you get exactly 30degrees or go as long as your iteration requires. In designing digital circuit i.e., a Verilog or VHDL script for the algorithm, if your desired input bit is 16, then you have to keep the iteration for 16 times irrespective of if you get the exact value. Usually before up to 16 iterations you must have landed on the exact required figure.

In the design the Z input usually hold your desired degree, and instead of counting from zero up to the required degree. We actually reduce it down to zero from the angle. The iterations drive the X and Y output between negative and positive values, till it finally reaches zero.

After that we have to just multiply by the aggregate constant 0.607253. i.e

X = 0.607253 * 1.4155571875 = 0.8596013

Y = 0.607253 * 0.840911406 = 0.510645 approx 0.5

It is a mathematical constant, but in digital design , it can be arbitrary constant gain depending on the designers choice and type of signal you are
dealing with. Its just a digital amplifier.

Now, The outputs represent values in the –1 to +1 range.

The core will output .

Sin : 16380(dec) = 3FFC(hex)

Cos : 28381(dec) = 6EDD(hex)

The results can be derived as follows:

2^{15} = 1;
Sin30 = 16380 = ????

Cos30 = 28381 = ?????

Sin30 = (16380 * 1) / 2^{15} = 0.499999

Cos30 = (28381 * 1) / 2^{15} = 0.8661

Now, this is the end of this lecture on cordic , the aim of the course is to design an OFDM unit in FPGA. Next tutorial would concentrate on FFT(fast fourier transform) unit. all these would be sub units in the OFDM circuit.

The verilog code for the cordic algorithm is given below.

library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_arith.all; entity p2r_CordicPipe is generic( WIDTH : natural := 16; PIPEID : natural := 1 ); port( clk : in std_logic; ena : in std_logic; Xi : in signed(WIDTH -1 downto 0); Yi : in signed(WIDTH -1 downto 0); Zi : in signed(19 downto 0); Xo : out signed(WIDTH -1 downto 0); Yo : out signed(WIDTH -1 downto 0); Zo : out signed(19 downto 0) ); end entity p2r_CordicPipe; architecture dataflow of p2r_CordicPipe is -- -- functions -- -- Function CATAN (constante arc-tangent). -- This is a lookup table containing pre-calculated arc-tangents. -- 'n' is the number of the pipe, returned is a 20bit arc-tangent value. -- The numbers are calculated as follows: Z(n) = atan(1/2^n) -- examples: -- 20bit values => 2^20 = 2pi(rad) -- 1(rad) = 2^20/2pi = 166886.053.... -- n:0, atan(1/1) = 0.7853...(rad) -- 0.7853... * 166886.053... = 131072(dec) = 20000(hex) -- n:1, atan(1/2) = 0.4636...(rad) -- 0.4636... * 166886.053... = 77376.32(dec) = 12E40(hex) -- n:2, atan(1/4) = 0.2449...(rad) -- 0.2449... * 166886.053... = 40883.52(dec) = 9FB3(hex) -- n:3, atan(1/8) = 0.1243...(rad) -- 0.1243... * 166886.053... = 20753.11(dec) = 5111(hex) -- function CATAN(n :natural) return integer is variable result :integer; begin case n is when 0 => result := 16#020000#; when 1 => result := 16#012E40#; when 2 => result := 16#09FB4#; when 3 => result := 16#05111#; when 4 => result := 16#028B1#; when 5 => result := 16#0145D#; when 6 => result := 16#0A2F#; when 7 => result := 16#0518#; when 8 => result := 16#028C#; when 9 => result := 16#0146#; when 10 => result := 16#0A3#; when 11 => result := 16#051#; when 12 => result := 16#029#; when 13 => result := 16#014#; when 14 => result := 16#0A#; when 15 => result := 16#05#; when 16 => result := 16#03#; when 17 => result := 16#01#; when others => result := 16#0#; end case; return result; end CATAN; -- function Delta is actually an arithmatic shift right -- This strange construction is needed for compatibility with Xilinx WebPack function Delta(Arg : signed; Cnt : natural) return signed is variable tmp : signed(Arg'range); constant lo : integer := Arg'high -cnt +1; begin for n in Arg'high downto lo loop tmp(n) := Arg(Arg'high); end loop; for n in Arg'high -cnt downto 0 loop tmp(n) := Arg(n +cnt); end loop; return tmp; end function Delta; function AddSub(dataa, datab : in signed; add_sub : in std_logic) return signed is begin if (add_sub = '1') then return dataa + datab; else return dataa - datab; end if; end; -- -- ARCHITECTURE BODY -- signal dX, Xresult : signed(WIDTH -1 downto 0); signal dY, Yresult : signed(WIDTH -1 downto 0); signal atan, Zresult : signed(19 downto 0); signal Zneg, Zpos : std_logic; begin dX <= Delta(Xi, PIPEID); dY <= Delta(Yi, PIPEID); atan <= conv_signed( catan(PIPEID), 20); -- generate adder structures Zneg <= Zi(19); Zpos <= not Zi(19); -- xadd Xresult <= AddSub(Xi, dY, Zneg); -- yadd Yresult <= AddSub(Yi, dX, Zpos); -- zadd Zresult <= AddSub(Zi, atan, Zneg); gen_regs: process(clk) begin if(clk'event and clk='1') then if (ena = '1') then Xo <= Xresult; Yo <= Yresult; Zo <= Zresult; end if; end if; end process; end architecture dataflow;
